    Diamerter 500mm Distillation Tower Internals Random Packing Support Plate Ss304

    SS304 Diamerter 500mm Random Packing Support Plate for Distillation Tower

    1. Random Packing Support Plate for Distillation Tower

    It is composed of several beam support plates, which is a detachable structure.

    The opening size of the support plate is generally 12mm * 45mm long round hole. When the size (diameter or height) of the bulk packing is smaller than the opening size of the support plate, lay one or two layers of wire mesh on the upper surface of the support plate, and then stack the packing.

    2. The random packing support plate arrangements according to tower inner diameter (part table):

    Item

    Inner Dia.

    mm

    Support Plate Dia.

    mm

    Support Plate Sections

    Support Ring Width

    mm

    Support Ring Thickness

    mm

    1

    300

    290

    2

    30

    10

    2

    400

    380

    2

    30

    10

    3

    500

    480

    2

    30

    10

    4

    600

    580

    3

    30

    10

    5

    700

    680

    3

    30

    10

    6

    800

    780

    3

    40

    10

    7

    900

    880

    3

    40

    10

    8

    1000

    980

    3

    40

    10

    9

    1100

    1080

    4

    40

    10

    10

    1200

    1160

    4

    50

    10

    11

    1300

    1260

    4

    50

    14

    12

    1400

    1360

    4

    50

    14

    13

    1500

    1460

    5

    50

    14

    14

    1600

    1560

    5

    50

    14

    15

    1700

    1660

    5

    50

    14

    16

    1800

    1760

    6

    50

    14

    17

    1900

    1860

    6

    50

    14

    18

    2000

    1960

    6

    50

    14

    19

    2100

    2060

    7

    50

    14

    20

    2200

    2160

    7

    50

    14

    To be continued.

    When the tower inner diameter is over 2600mm, main bearing beam under the beam supporting plate is required.

    3. Features of beam type random packing support plate

    1. Good rigidity and large capacity.
    2. The pressure drop of gas through the support plate is small.
    3. The gas and liquid flow channels are separated, and the gas phase is sprayed to the packing layer through the side opening holes, while the liquid phase flows to the lower packing layer through the opening at the bottom of the support plate, so the gas and liquid are evenly distributed
    4. The free cross-sectional area of gas-phase flow is large. Generally, the free cross-sectional area can reach more than 90% of the cross-sectional area of the tower, so a higher gas-liquid load is allowed.

    4.Applications

    1. Distillation towers,
    2. Scrubbing towers,
    3. Steam drum,
    4. Evaporators,
    5. Knockout drum,
    6. Sulfuric acid plants,
    7. Petrochemical plants,
    8. Flue gas desulfurization,
    9. Refineries,
    10. LNG plants,

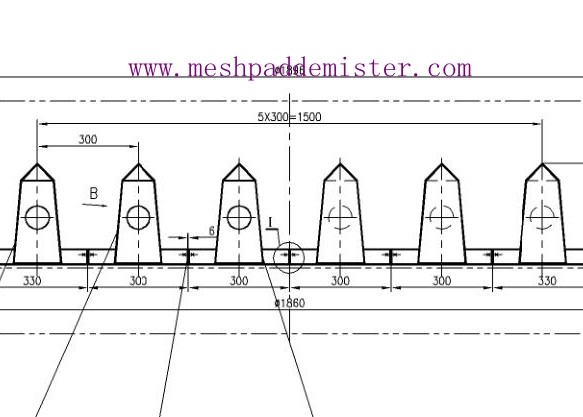

    5. Random Packing Hump Support design drawing


    Diamerter 500mm Distillation Tower Internals Random Packing Support Plate Ss304Diamerter 500mm Distillation Tower Internals Random Packing Support Plate Ss304


    Diamerter 500mm Distillation Tower Internals Random Packing Support Plate Ss304


    Welcome your contact with your private tower internals plan or ideas!
