SS304 SS316 metal structured packing for air liquid filter and
distillation tower
1. factory of 250Y structured packing.

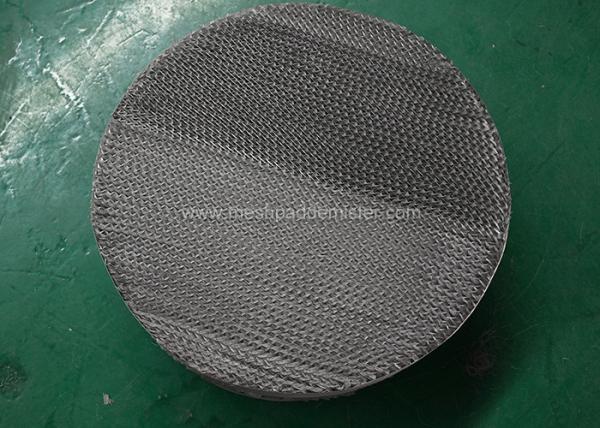

Super Packing Mall Metal Structured Packing is a general type of
packing, which is composed of several vertically arranged
reticulated corrugated plates. Instead of welding, the metal wire
gauze structured packings are fixed to the wall with nails or
rings. Its structure can not only change the distribution of
liquid, but also improve the transfer efficiency.
2.The role of structured packing in high vacuum distillation column
The main advantage of metal wire gauze structured packings is that
even under very small liquid load, the separation efficiency is
very high, the pressure is reduced, and the liquid retention is
small, so it is very suitable for distillation of heat sensitive
products. (including extractive distillation, azeotropic distillation and
salt distillation) according to whether the additive in the mixture
is added to affect the vapor-liquid balance. If the distillation process is accompanied by distillation, there
are two types of chemical reactions called reactive distillation.
3. factory structured packing types:
Below are the main types we usually make. Each type has two styles,
different in the wave clination angle to the axis, 30 degrees (X
style) and 45 degrees (Y style). For example, 250Y structured
packing, each wave has a 45 degrees angle to the axis, and the
neighboring plates' waves are vertical to each other. We can also
help make other types such as 450, 252, 452, etc. as per customer
request.
| Type | Surface area | Void fraction | Wave height | Nt | ΔP | Max.F-factor |
| m2/m3 | % | mm | m-1 | Pa/m | m/s.(kg/m3)0.5 |
| 125 | 125 | 98 | 25.4 | 1-2 | 150 | 3 |
| 250 | 250 | 97 | 12.5 | 2-3 | 200 | 2.6 |
| 350 | 350 | 94 | 9 | 2.0-2.5 | 300 | 2 |
| 500 | 500 | 92 | 6.3 | 4-5 | 400 | 1.8 |
| 700 | 700 | 85 | 4.5 | 5-7 | 650 | 1.6 |
4.Application
Fine chemical, flavours factory, isomer separation. The separation
of thermally sensitive materials, testing tower and the improvement
of tower.
5. factory structured packing cases
They are widely used in private refineries and some pilot projects.
I was lucky because he knew a lot about structured packaging and
came up with the type he wanted. To be honest, while I know the
basic characteristics of each type of packaging and can do some
simple calculations on it, it is far from enough to provide
professional advice that is appropriate for the entire system.
structured packing refers to a ranges of specially designed
materials for use in absorption and distillation columns and
chemical reactors in order to improve separation.
structured packing typically consists of thin corrugated metal
plates or gauzes arranged in a way that they force fluids to take
complicated paths through the column, thereby creating a large
surface area for contact between different phrases . it provides
high capacity, high efficiency and lower pressure drop than any
random packings and most trays. Because of the capillary effect,
the wire gauze material provides an extremelly wettable surface,
resulting in excellent mass transfer efficiency, particularly at
very low liquid rates.
