Factory Price 304 316 410 Stainless Steel Structured Tower Packing
Metal Wire Gauze Structured Packing for Distillation

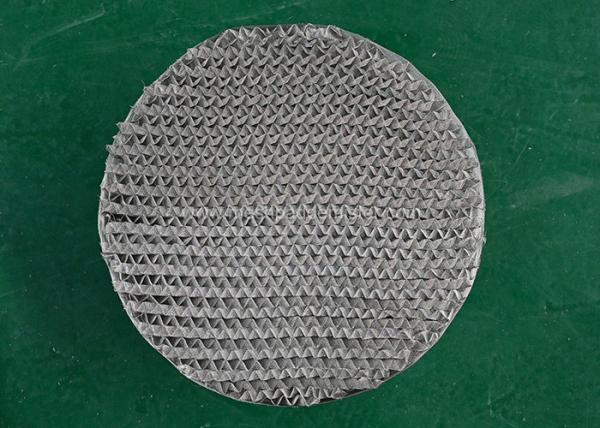

1. Super Packing Mall Metal Structured Packing
This is a general type of packing, which is composed of several
vertically arranged reticulated corrugated plates. Instead of
welding, the metal wire gauze structured packings are fixed to the
wall with nails or rings. Its structure can not only change the
distribution of liquid, but also improve the transfer efficiency.
2.The role of structured packing in high vacuum distillation column
Metal structured packing can be devided into metal perforated plate
corrugated structured packing and metal wire gauze corrugated
structured packing by raw materials.
structured packing typically consists of thin corrugated metal
plates or gauzes arranged in a way that they force fluids to take
complicated paths through the column, thereby creating a large
surface area for contact between different phrases . it provides
high capacity, high efficiency and lower pressure drop than any
random packings and most trays. Because of the capillary effect,
the wire gauze material provides an extremelly wettable surface,
resulting in excellent mass transfer efficiency, particularly at
very low liquid rates.
3. factory structured packing types:
Below are the main types we usually make. Each type has two styles,
different in the wave clination angle to the axis, 30 degrees (X
style) and 45 degrees (Y style). For example, 250Y structured
packing, each wave has a 45 degrees angle to the axis, and the
neighboring plates' waves are vertical to each other. We can also
help make other types such as 450, 252, 452, etc. as per customer
request.
| Type | Surface area | Void fraction | Wave height | Nt | ΔP | Max.F-factor |
| m2/m3 | % | mm | m-1 | Pa/m | m/s.(kg/m3)0.5 |
| 125 | 125 | 98 | 25.4 | 1-2 | 150 | 3 |
| 250 | 250 | 97 | 12.5 | 2-3 | 200 | 2.6 |
| 350 | 350 | 94 | 9 | 2.0-2.5 | 300 | 2 |
| 500 | 500 | 92 | 6.3 | 4-5 | 400 | 1.8 |
| 700 | 700 | 85 | 4.5 | 5-7 | 650 | 1.6 |
4.Application
Fine chemical, flavours factory, isomer separation. The separation
of thermally sensitive materials, testing tower and the improvement
of tower.
widely used in basic chemical columns
fine chemical filed like ethyl benzene/ styrene, fatty acid
processing plant
oil refinery towers, vacuum distillation towers, absorption towers
and natural gas dehydration towers
5. factory structured packing cases
We are a factory. Our company has been established since 2005. it
covers a land area of 1500 square meters. Our main products ranges
from gas liquid filtering wire mesh,wire mesh demister, knitting
screen , flourine plastic screen and kinds of pall rings, to name
but a few.
We do provide free samples, yet we don’t bear the shipping cost.
We are based in Anping county, hebei province, china. Anping county
is well known as the hometown of kinds of wire mesh in china. We
have come a long way by becoming one of the biggest supplier of
filter wire mesh products and mesh demisters locally. You are
welcome to visit our factories any time.
Welcome your inquiry any time!
