CY 700 type DN 800 mm * 12000 mm height wire mesh structured
packing
1. CY 700 type DN 800 mm * 12000 mm height wire mesh structured
packing used in distillation column.
It is an typical distillation packing. The tower internal diameter
is 800mm. And the packing beds are totally 12000 mm. So we will
need to make 60 layers of CY 700 wire mesh structured packing
pieces for this tower.
2. What are the necessary structured pacing conditions for CY 700
type DN 800 mm * 12000 mm height wire mesh structured packing?
1) The surface area per unit volume of structured packing should be
large;
2) The free volume of the liquid phase in contact with the gas
phase must be large;
3) The resistance to steam should be small (i.e. the
cross-sectional area of the gap should be large);
4) Chemical resistance to both liquids and vapors;
5) The density should be small;
6) The price per unit of effective area should be small
3. structured packing types
| Item | Unit | 125X | 125Y | 250X | 250Y | 350X | 350Y | 500X | 500Y |
| corrugation height h | mm | 24.0 | 11.5 | 8.4 | 6.0 |
| corrugation inclination θ | (°) | 30 | 45 | 30 | 45 | 30 | 45 | 30 | 45 |
| corrugation distance 2B | mm | 39.6 | 19.0 | 14.0 | 9.9 |
| corrugation angle β | (°) | 79.0 | 79.1 | 79.6 | 79.0 |
| void fraction ε | δ=0.15mm | % | 99.4 | 98.6 | 98.0 | 97.2 |
| δ=0.12mm | % | 99.5 | 98.9 | 98.4 | 97.8 |
| δ=0.10mm | % | 99.6 | 99.1 | 98.7 | 98.2 |
| Perforated hole diameter d0 | mm | 4.5 | 4.5 | 4.0 | 4.0 |
| Opening rate σ | % | 8.5-9.5 | 8.5-9.5 | 9.0-10.0 | 9.0-10.0 |
| radius of curvature of the top circle of corrugation angle R | mm | ≤2.0 | ≤1.4 | ≤0.9 | ≤0.5 |
Note: The influence of opening rate on the plate is not calculated
4. CY 700 type DN 800 mm * 12000 mm height wire mesh structured
packing introduction.
1.1 This standard specifies the requirements for marking,
specification and characteristics, materials, manufacturing
requirements, inspection and acceptance, marking, packaging,
storage and transportation of stainless steel orifice corrugated
packing products, as well as the calculation of characteristic
parameters of orifice corrugated packing.
1.2 The corrugated packing with stainless steel orifice plate is
suitable for gas-liquid mass transfer separation tower equipment,
and the applicable temperature of the packing is - 200 ~ 400 ℃.
1.3 The structured packing is suitable for the clean gas-liquid
system without solid particles or suspended solids or easy to self
assemble.
2. Reference standard: GB / T 4239 cold rolled stainless steel and
heat resistant steel strip

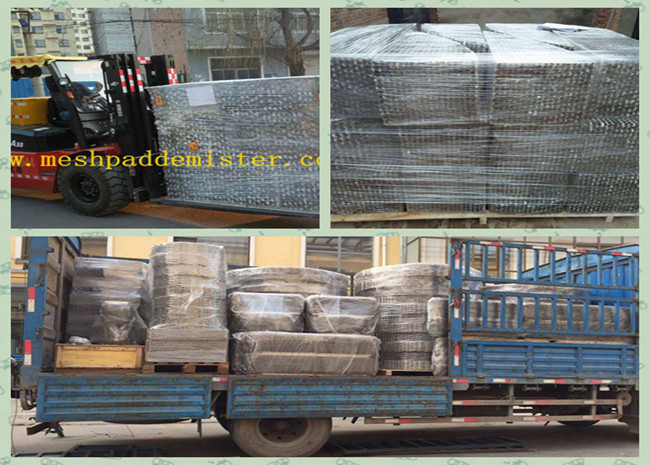

5. Shipment of CY 700 type DN 800 mm * 12000 mm height wire mesh
structured packing
every year we manufacture and supply hundreds of cubic meters of
metal structured packing in different models. There are many
popular types and materials for option. Custom order is welcome,
too! We are happy to help with what you need!
