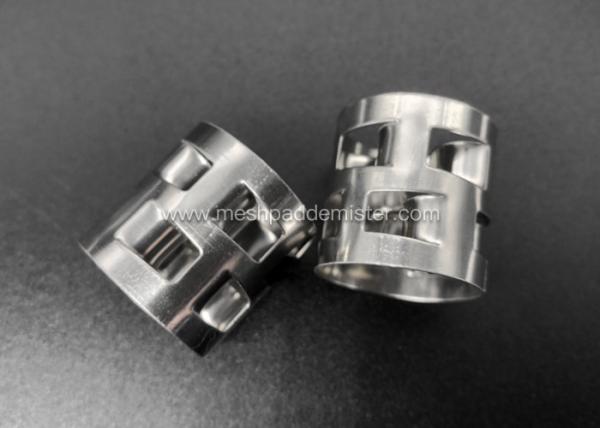

Distillation Column Metal Random Packing Pall Ring from factory
1.Ball ring
Ball ring packing has the advantages of large capacity, low
resistance, high separation efficiency and flexible operation.
Under the same depressurization conditions, its processing capacity
is more than 50% greater than that of rasihuan. Under the same
treatment capacity, the decompression rate can be reduced by half,
and the mass transfer efficiency can be increased by about 20%.
Using Bauer can also reduce the height of the tower to save 20% -
40% of the packing volume.
2. Metal Pall Ring Specification:
Size Dia.*Height (mm) | Thickness mm | Pack No. (m3) | Pack Density (kg/m3) | Specific Area (m2/m3) | Void Volume % | Dry Packing Factor |
| 16*16 | 0.3 | 214000 | 396 | 362 | 94.9 | 423 |
| 25*25 | 0.4 | 51940 | 393 | 219 | 95.0 | 255 |
| 38*38 | 0.6 | 15180 | 318 | 146 | 95.9 | 165 |
| 50*50 | 0.8 | 6500 | 314 | 109 | 96.0 | 124 |
| 76*76 | 1.2 | 1830 | 308 | 71 | 96.1 | 80 |
3. Pall ring application
It is applicable to various separation, absorption and desorption
devices, atmospheric and vacuum devices, synthetic ammonia
decarbonization and desulfurization systems, ethylbenzene
separation, isooctane / toluene separation, etc.
What is the role of wallab ring packing in waste gas treatment?
What is the effect of demisting when the Bauer ring is filled in
the purification tower? The free volume of ball ring packing is
large, and the packing layer can hold a large amount of liquid for
a long time, so as to increase the gas-liquid contact time and
improve the mass transfer efficiency of packing. Large free volume,
large flow, good quality and high efficiency. It is widely used in
chemical packing tower, dust removal, sewage treatment, air
purification, waste gas treatment tower and other environmental
protection industries. The support layer is filled with Bauer rings
and stacked freely. In addition to effectively reducing the water
content in the waste gas, it is also easy to maintain, reduce the
corrosion rate of subsequent pipelines, and improve the surrounding
working environment.
4. Metal Pall Ring Features:
Easily wettable
High resistance to fouling
High temperature endurable
High temperature applications
HIGH MECHANICAL STRENGTH
High capacity with low pressure drop
Mechanically robust, lesser probability of breakage
Good liquid/gas distribution and high mass transfer efficiency
5. Metal Pall Ring Production & Shipment
Welcome your inquiry with any questions!
