ISO9001 Brass Copper Saddle Rings 50 # Metal Random Packing

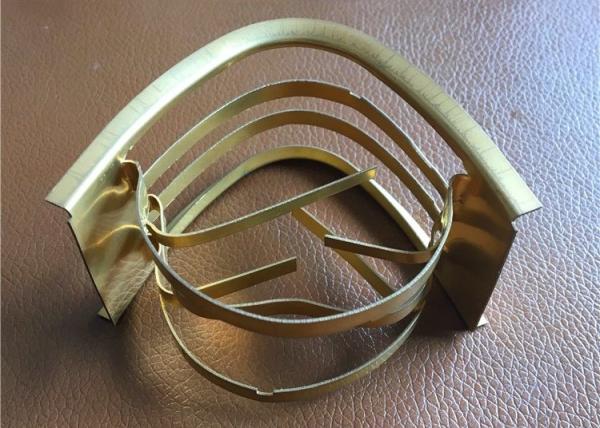

1. Metal Saddle Ring Introduction
Metal saddle ring is a new type of high efficiency random packing developed in the
1990s. It is used mainly in new packing tower. The towers can be 35% lower in height, or 30% smaller in diameter
than previous towers. In other words, the metal saddle ring
increased 10-30% in efficiency, and reduced 20-60% in pressure
drop. In China, the experimental study of dry distillation, rather
than wet distillation, shows that the investment can be reduced by
20%. Generally speaking, the adoption of metal saddle ring can
increase the production, low energy consumption and cost, and
improve the separation efficiency.
2. Popular types of metal saddle rings in the world market:
| Dia. | Size mm | Thickness mm | Bulk Qty n/m3 | Specific area M2/m3 | Void % | F factor |
| 15# | 16.5*10.6 | 0.3 | 325000 | 265 | 96.5 | 291 |
| 25# | 25.9*12.6 | 0.3-0.4 | 128000 | 193 | 97.4 | 207-213 |
| 40# | 35.4*18.8 | 0.3-0.4 | 52000 | 143 | 97.9 | 156-159 |
| 50# | 48.5*28.6 | 0.4-0.6 | 15550 | 94 | 98.1 | 98-101 |
| 60# | 67*37 | 0.4-0.6 | 8400 | 76 | 98.8 | 79-80 |
| 70# | 76.5*42.5 | 0.5-0.6 | 4700 | 59 | 99.1 | 62 |
3. Benefits of metal saddle rings
- High-performance
- Higher mechanical strength
- Large effective interfacial area
- Geometry ensures low liquid hold-up
- Significant improvement in capacity compared to Pall Rings
4. Metal Saddle Ring Application:
Metal saddle ring is a kind of universal packing, which can be widely used in distillation, absorption and other reactions. It can be used in both vacuum tower and high pressure tower. In
vacuum tower, low pressure is very important. While in
high-pressure tower, the capacity of metal saddle ring is much
larger than typical tower trays. It shows good performance in both
conditions.
Applications:
•Sour Water Stripper
•Atmospheric and high pressure distillation
•Demthanizer / deethanizer
•Acid Gas Removal
Quench Tower and Main Fractionator
5. Hualai metal tower packing product groups:
6. Hualai Tower Packing Factory
In Hualai factory, we produces and exports perforated corrugated
metal plate structured packing, corrugated wire gauze packing,
metal random packing like pall rings, intalox saddles, cascade mini
ring, raschig ring, rosette ring, super raschig ring, inner arc
ring, conjugate ring, mini ring, etc.. All these types of packing
are available in carbon steel, stainless steel 304, 316L.
Additionally, titanium, monel, copper and some other alloy
materials are also available for some of the packing types, too.
Welcome your inquiry for more info!
