    With Screen Grids And Bracket Side Access Air Filter Mesh Pad Demister

    With Screen Grids And Bracket Side Access Air Filter Mesh Pad Demister

    1. Air Filter Mesh Pad Demister:

    In this case, the mesh pad demisters are going to be used in ventilation system for a painting room. The bracketed structure are special designed for easy replacement and maintenance. The screen grids can be crimped mesh, welded mesh, and expanded mesh, also. It is usually in the same stainless steel material.

    2. Air Filter Mesh Pad Demister Specifications in this case:


    ItemValueUnit
    MaterialSS 304/
    Shape & Size1495*1040mm
    Mesh Thickness150mm
    Demsiter Height150mm
    Wire Diameter0.28mm
    Mesh Density144kg/m3
    Void Fraction0.982/
    Specific Area260m2/m3
    Gridsscreen mesh and stainless plate/

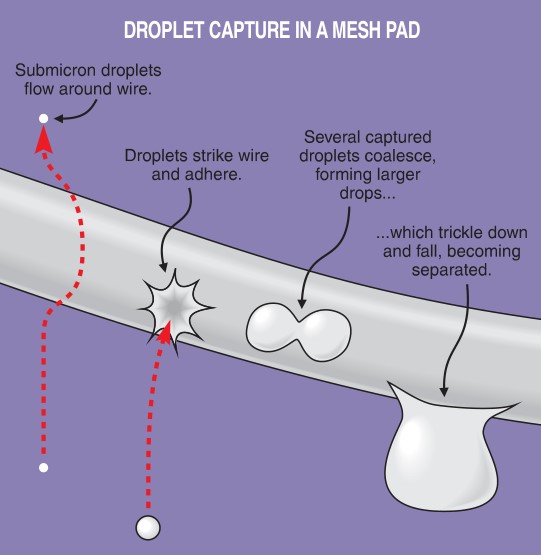

    3. How does a air filter mesh pad demister pad work?

    (1)A vapor stream carrying entrained liquid droplets passes through a demister pad. The vapor moves freely through the knitted mesh.
    (2)The inertia of the droplets causes them to contact the wire surfaces and coalesce.
    (3)The large, coalesced droplets formed in the mesh ultimately drain and drop to the vessel bottom.




    4. Air filter mesh pad demister Efficiency:

    When properly designed demister pads can give efficiency up to 99.9% with minimal pressure drop. Normally demister pads can remove droplets down to 5 microns and lower with a free volume of up to 99% and a surface area of up to 1940 m2/m3. Due to high value of free volume the pressure drop across the demister pad is sufficiently low in most applications.

    5. air filter mesh pad mist eliminator benefits:

    • Low cost
    • Practical solution
    • Low pressure drop
    • Simplified maintenance
    • Problem solving results
    • Tailored to meet client specifications
    • Guaranteed high performance efficiency


    6. Material used in air filter mesh pad demister construction:

    Mesh and grids may be made from most metals and plastics i.e. SS304, 304L, 316, 316L, Monel, Nickel, Copper, P.T.F.E., H.D.P.E., P.P. etc. and other metals, alloys or plastic which can be drawn or extruded.

    7. Air filter mesh pad demister package & shipping:
