Hualai OEM service CY 700 metal wire mesh structured packing data
sheet
Materials of Construction
The most common material used for Hualai structured column packing
is SS 304L and SS 316L. However Hualai manufactures this solely based on our customers’
requirements and can also be made from other materials based on
special requests. Other materials like Titanium, duplex 2205,
copper, etc. are also no problem with us.
Uniform Liquid Distribution
In order to achieve even liquid distribution over the packing it is
a must to have a good liquid distributor to maximize the
interaction of the liquid and vapor. However if the packing height
exceeds 3 meters we recommend using an intermediate liquid
re-distributor as well for even flow.
Hualai wire gauze structured packing is the preferred packing in distillation service for deep vacuum
and low liquid rate applications. The characteristic of lowest
pressure drop per theoretical stage makes wire gauze packing the
preferred device for processing specialty chemicals,
pharmaceuticals and temperature-sensitive materials.
Wire gauze packing is generally used in small to medium diameter
columns to achieve the maximum number of theoretical stages in the
minimum column height. Because of the capillary effect, the wire
mesh material provides an extremely wettable surface resulting in
excellent mass transfer efficiency particularly at very low liquid
rates.
Hualai wire mesh structured packing products list (normal):
| Type | Specific Surface | Bulk Density | Void Ratio | obliquity | ΔP | Liquid spray density | Liquid holdup | Theo. Plate | HETP | F factor | Application② |
| (m2/m3) | (kg/m3) | (%) | Angle | (Pa/plate) | (m3/m2*h) | % | (piece/m) | mm | (m/s)*(kg/m3)0.5 | |
| 250(AX) | 250 | 45① | 98.5 | 30 | 10-40 | 0.2-12 | 2 | 2.5-3 | 100 | 2.5-3.5 | Precision distillation with few theoretical series |
| 500(BX) | 500 | 95① | 96.9 | 30 | 50 | 0.2-12 | 4.2 | 4-5 | 200 | 2.0-2.4 | Vacuum Distillation of Thermosensitive and Difficult Separation
Systems |
| 700(CY) | 700 | 130① | 95.6 | 45 | 67 | 0.2-12 | 6 | 8-10 | 333-400 | 1.5-2.0 | Isotopic mixture, isomeric mixture separation |
①The data are based on 0.12mm wire, stainless steel material.
Applicable temperature (-200—400)℃. 0.15mm and 0.17mm wire are also
available.
②Metal wire mesh corrugated packing is suitable for clean
gas-liquid system without solid particles or suspended solids or
not easy to self-assemble.
Benifits of Hualai structured packing:
Lower pressure drop through the column
■Lower botoms temperature for heat sensitive systems
■Higher relative volatility for difficult separations
■Lower energy consumption
■Reduced foaming tendency
Higher efficiency in the same tower height
■Large number of theoretical stages required
■Reduced reflux requirement
Higher capacity
■Reduced vessel diameter
■Increased operating rates
Excellent liquid spreading characteristics
■Improved efficiency
■Offshore applications subject to permanent tilt and motion
Reduced liquid hold-up
■Smaller amounts of polymer inhibitor

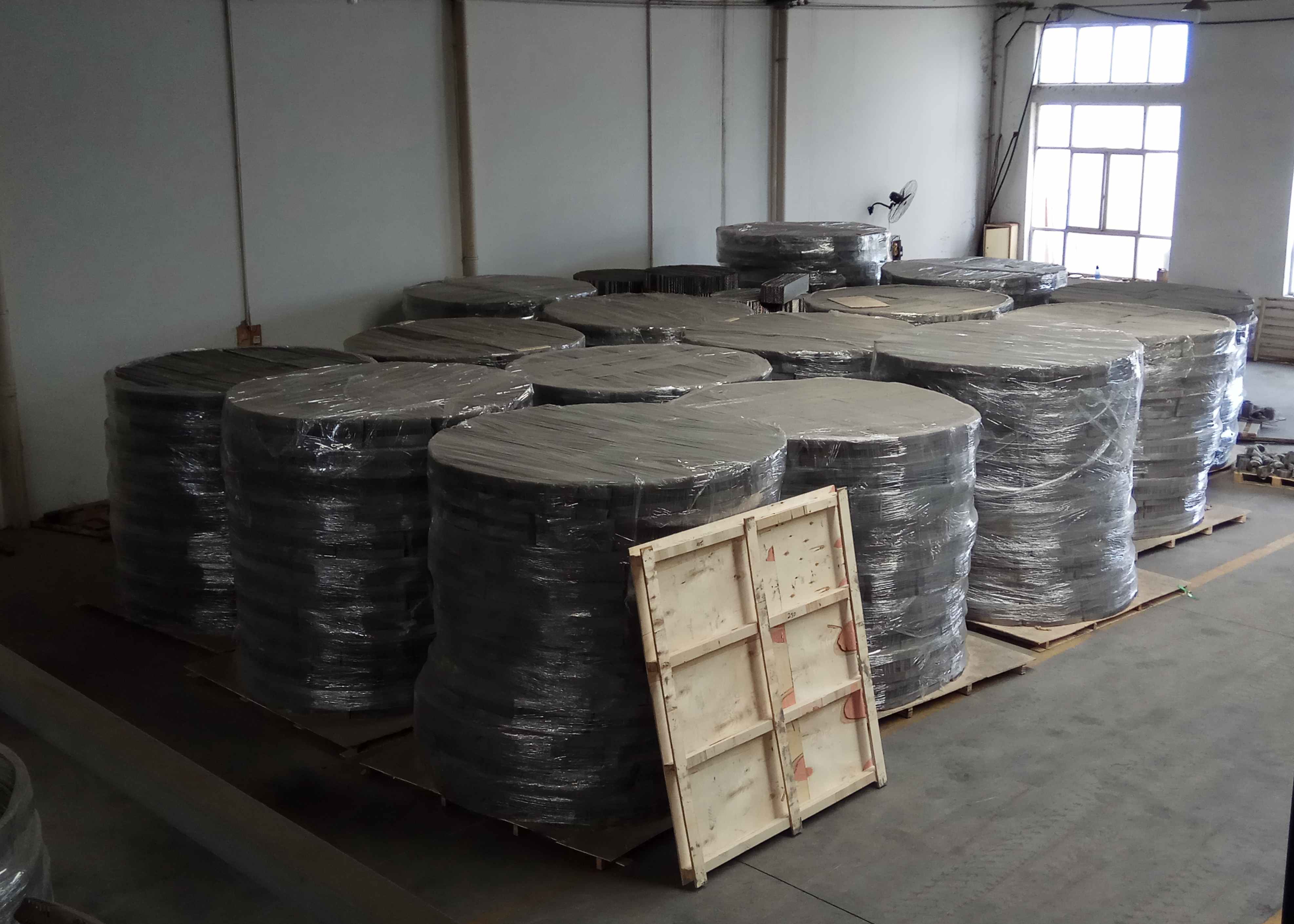

Projects applying wire mesh structured packing
Welcome your inquiry about Hualai structured packing any time!
