PTFE Knit Mesh Demister Mist Eliminator 900 Mm 1 Whole Round Shape
PTFE is usually considered the king of the plastic materials. It
has perfect resistance to acid and other corrossive solutions. And
It has good performance with a relatively high temperature. The
working temperature of PTFE material can be as high as 250 ℃. PTFE
mesh pad is made of knitted PTFE wire mesh tube. If grids are
needed, both PTFE and SS316L materials are available with us.
Usually if the opertation condition is high corrosive, we recommend
you use PTFE grids, too. Pure PTFE material assures a longer period
of service time, which at last helps save the total cost.
PTFE knit mesh demister mist eliminator in this case:
| Item | Value | Unit |
| Material | PTFE | / |
| Shape & Size | Φ900 | mm |
| Mesh Thickness | 150 | mm |
| Demsiter Height | 200 | mm |
| Wire Diameter | 0.3 | mm |
| Mesh Density | 193.7 | kg/m3 |
| Void Fraction | 0.976 | / |
| Specific Area | 346 | m2/m3 |
| Grids | 25*3 flat bar | mm |
Advanced mechanical design and careful selection of materials
provide maximum performance lifetime.
As a consequence of maximizing performance lifetime, life-cycle
cost (total cost) is minimized.
Superior technical support minimizes risk in process design and
plant operations.
When-needed delivery prevents unnecessary plant downtime.
Industry leadership in quality assures customer satisfaction
Where are DEMISTER units used?
Knockout drums and separators – save on capital costs by decreasing vessel size-recover costly
fatty acids from stream-reduce compressor maintenance by preventing
scale build-up.
Absorbers – reduce overhead losses of glycols in dehydrators to no more than
0.1 gal/MMSCF natural gas-cut losses of absorption oil and amines
in CO2 systems.
Scrubbers – reduce chemical discharges from Kraft mill smelt dissolver tank
to less than 0.11 kg/dry ton (0.25 lb/dry ton) of pulp-improve
scrubber efficiency by removing particulates carried in entrained
liquids.
Distillation columns – improve product purities and increase throughput capacities for
petrochemicals, organic intermediates, fine chemicals.
Evaporators – prevent carryover loss of valuable products, keep condensate TDS
<10 ppm for highest quality boiler feed water-clean up vacuum
ejector stream discharge-lower maintenance in vapor re-compression
systems.
High pressure steam systems – provide dry steam- cut TDS to <10 ppb in condensate-eliminate
build-up on turbine blades.
Refinery towers – increase throughput capacity-take deeper cuts for greater
product yields – prolong catalyst life in downstream cracking and
reforming units by reducing carbon and metals in side
draws-use lower grade crudes.

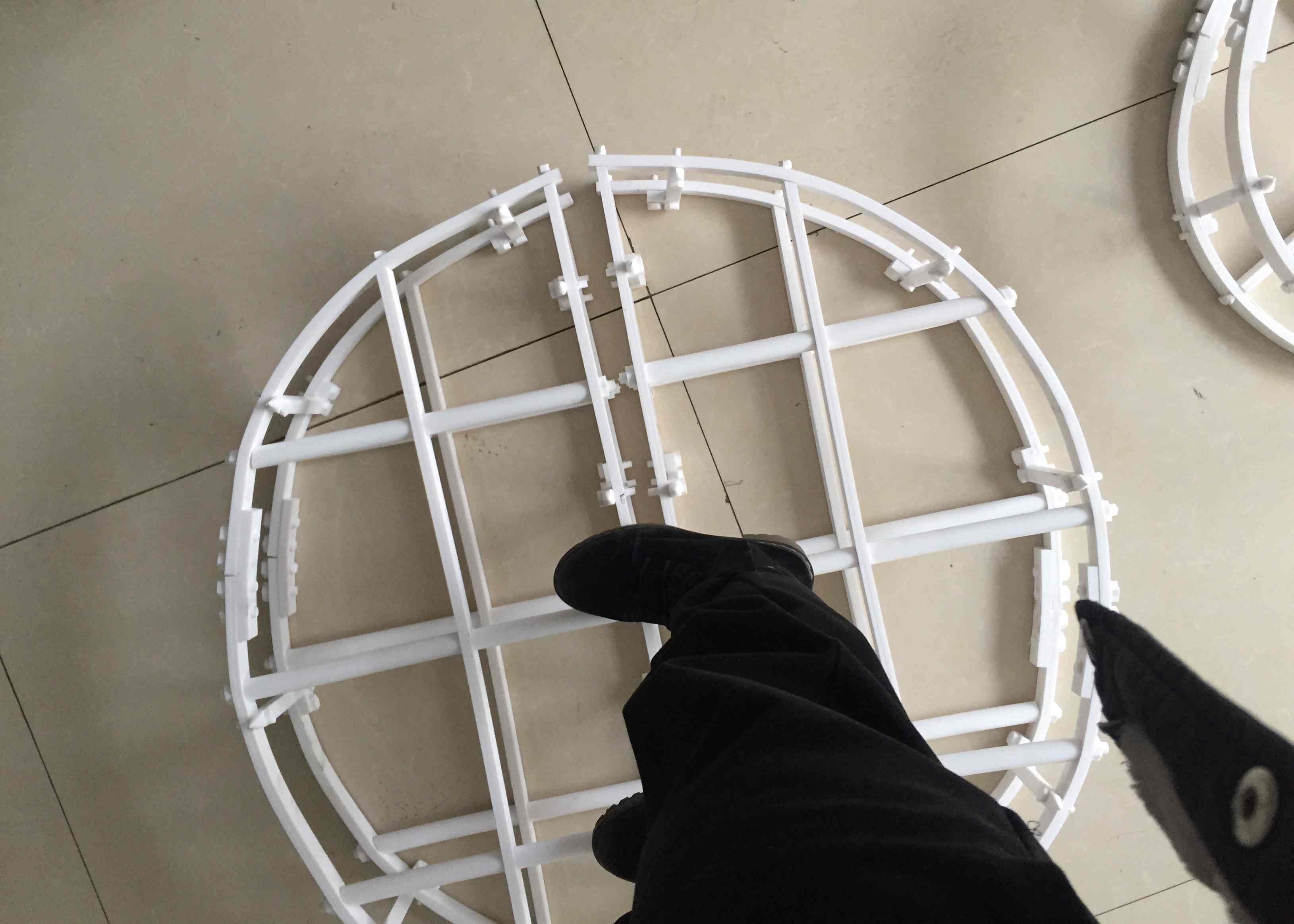

Do you ever wonder what strength the PTFE grids can provide? Once
we had a test done like below:
