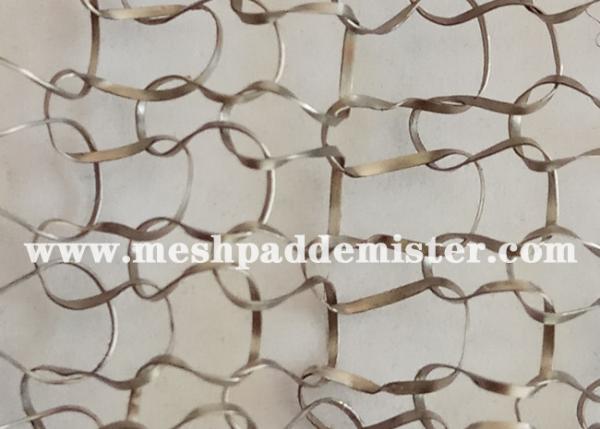

0.1 mm * 0.4 mm flat wire knitted mesh roll
Flat wire knitting mesh:
Knitted flat wire mesh screen is also known as vapor liquid filter
screen, foam breaking screen, packing screen, gas liquid screen,
foam catching screen, woven screen, knitted screen, braided screen
and shielded metal screen. It is a kind of wire mesh woven in
special form, which is used to make wire mesh demister and wire
mesh mist eliminator in chemical industry, to eliminate or capture
the fog drop and liquid foam entrained in the gas in the process of
catalyst and distillation, evaporation, absorption, etc..
Flat wire knitting mesh is used for oil-gas separation, oil-water
separation, gas-liquid separation, shock absorption and silencing,
sealing in the manufacturing process of mechanical equipment
components, etc.; used for dust removal, water removal, mist
removal and air purification in the field of environmental
protection, flue gas desulfurization, water treatment equipment,
oil-water separator; separation and filtering devices for various
occasions; filter elements for automobiles and tractors; sealing,
shock absorption (shock avoiding), noise reduction and exhaust
purification elements in automobile parts; shielding devices for
electromagnetic interference of electronic and electrical products
are widely used.
The most widely used occasions of knitted flat wire mesh products
in China are: oil, petrochemical, chemical, light industry,
medicine, metallurgy, aerospace, ship, automobile, machinery, noise
damping, pressure vessel, drying tower, absorption tower,
desulfurization tower, water mist and dust removal of environmental
protection engineering; it is used for gas-liquid separation and
gas-liquid moisture separation in the process of filtration,
screening, catalyst and distillation, evaporation, absorption, etc.
Knitted flat copper mesh for screw cleaning:
Step 1: Use a purging compound to clean the extruder. Then use
small ball of copper mesh with some silicone grease on it to clean
the die face. Also please clean the valve when it is still hot.
Step 2: Remove the die from the extruder head. It is best to clean
it by silicone coated copper gauze forced through the die with a
wooden dowel.
Step 3: Pull back and forth the copper gauze to complete the
cleaning after it pass through the die.
Step 4: Make sure that no residual trace of adhered plastic is
left, nor causing a scratch on the metal surface, so the die is
thoroughly clean.
Step 5: Remove the hot screw partly, wrap the copper gauze with
silicone coating 3 times around the screw, pull back and forth to
do the cleaning.
Step 6: Keep sliding the copper gauze when removing the screw out
of barrel slowly, until the screw is clean. It takes only 5 minutes
for step 5 and 6 operations.
Step 7: Wrap copper mesh at end of a long rod and pass it through
the barrel. Then, chuck the rod into power drill, insert fresh
gauze and pass back and forth through barrel until clean.
Step 8: Please do all the operations with silicone grease coated
copper mesh. Now all parts is clean and ready for reassemble.
Knitted flat copper mesh is one of the options:
| wire size mesh width | 4 inch 100 mm | 5 inch 127 mm | 6 inch 150 mm | More |
| 0.16 mm round wire | | | | |
| 0.23 mm round wire | | | | |
| 0.1 * 0.4 mm flat wire | | | | |
Please tick the coresponding table or specify your requirement.
Contact us in Hualai today to discuss your needs of knitted copper
mesh.
Knitted copper mesh manufacturing:
