Metal pall ring carbon steel Dia. 25 mm δ 0.5mm data sheet random tower packing

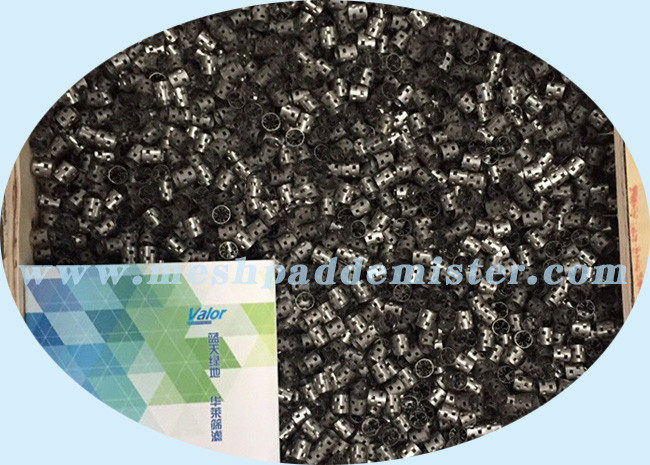

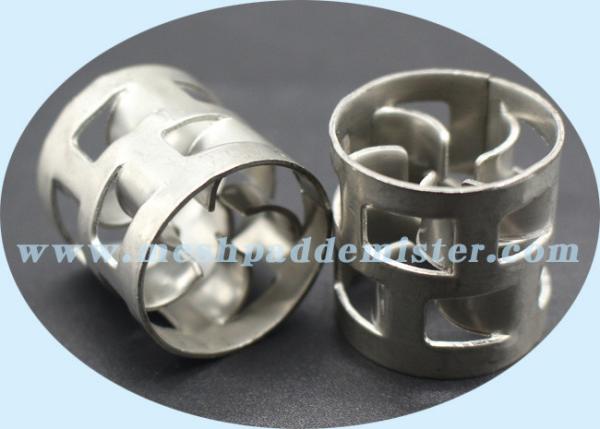

Metal Pall Ring Brief Introduction:
- It was developed from Raschig Ring by BASF in 1940s.
- It is made of sheet metal by punching and rolling.
- There are 2 rows of holes with tongue leaves on the ring wall.
- The upper and lower window holes are staggered with each other.
- Metal pall ring has much better mass transfer performance than same
size metal raschig ring.
- Metal pall ring is one of the most widely used random packing.
Metal Pall Ring Data Sheet:
Size Dia.*Height (mm) | Thickness mm | Pack No. (m3) | Specific Area (m2/m3) | Void Volume % | Dry Packing Factor |
| 16*16 | 0.3 | 214000 | 362 | 94.9 | 423 |
| 25*25 | 0.5 | 51940 | 219 | 95.0 | 255 |
| 38*38 | 0.6 | 15180 | 146 | 95.9 | 165 |
| 50*50 | 0.8 | 6500 | 109 | 96.0 | 124 |
| 76*76 | 1.2 | 1830 | 71 | 96.1 | 80
|
More sizes and thickness are available as per order.
Material: carbon steel, stainless steel 304, 316L, 904L, copper,
etc.
Metal Pall Ring Sales Case:
I have a korean customer named Mr. J. He works as a chemical
engineer in a corporation laboratory. Last time he contacted me to
see if we could provide 16mm pall rings in SS316, with certificates
for the material. Also he need the column random packing in a
hurry. Surely no problem! We have stock of such packing for
immediate delivery. It is convenient to send the pall rings by
SF-express to Republic of Korea, especially when the customers have
a SF account.
Metal Pall Ring Draft Drawing
The pall rings are in cylinder shape, with equal height and
diameter, and some windows on the side.
Metal Pall Ring Production Requirement:
- The joint clearance of pall ring shall be less than 0.4mm for dn16,
DN25 and dn38mm, and less than 0.8mm for DN50 and dn76.
- The upper and lower edges of the ring are not allowed to be
dislocated.
- The end cross section of the pall ring shall be perpendicular to
the axial center line and 90 degrees to the side.
- There shall be no crack on the surface of packing ring and no burr
on the edge of packing.
- The package material must be strong enough, to endure loading,
unloading and carrying for a few times. And it shall protect the
pall rings to reach destination safely. Rain proof and
moisture-proof measures shall be taken for metal pall rings during
transportation.
- The random tower packing stainless steel pall rings shall be stored
in a dry and non corrosive place. Do not store the pall rings in
broken packages.
