DN 800 - 150 316L wire mesh structured packing 86 pieces
1. Characteristics of wire mesh structured packing
Through regular arrangement of components, uniform and regular
gas-liquid flow channel is formed, so that gas-liquid contact in an
orderly manner, so as to strengthen mass transfer, reduce
amplification effect, reduce gas flow pressure drop and low liquid
holding capacity. It is especially suitable for vacuum distillation
of heat sensitive materials.
2. Wire Mesh Structured Packing Advantage:
The high efficiency achieved through this packing allows smaller
diameter columns and reduces expenses on structure, foundation,
installation, insulation and piping.
Due to its capillary movement of the liquids on the wire filaments
it operates at a very high efficiency even with decreasing loading
hence allowing the operation to run at multiple capabilities
Can easily replace existing columns with their old form of packing.
It not only increases efficiency but also reduces costs by
increasing product quality, production capacity and reducing
pressure drop.
3. Wire Mesh Structured Packing Datasheet:
| Type | Specific Surface | Bulk Density | Void Ratio | obliquity | ΔP | Liquid spray density | Liquid holdup | Theo. Plate | HETP | F factor | Application② |
| (m2/m3) | (kg/m3) | (%) | Angle | (Pa/plate) | (m3/m2*h) | % | (piece/m) | mm | (m/s)*(kg/m3)0.5 | |
| 250(AX) | 250 | 45① | 98.5 | 30 | 10-40 | 0.2-12 | 2 | 2.5-3 | 400-333 | 2.5-3.5 | Precision distillation with few theoretical series |
| 500(BX) | 500 | 95① | 96.9 | 30 | 50 | 0.2-12 | 4.2 | 4-5 | 200 | 2.0-2.4 | Vacuum Distillation of Thermosensitive and Difficult Separation
Systems |
| 700(CY) | 700 | 130① | 95.6 | 45 | 67 | 0.2-12 | 6 | 8-10 | 100 | 1.5-2.0 | Isotopic mixture, isomeric mixture separation |
Note:
1.The data are based on 0.12mm wire, stainless steel material.
Applicable temperature (-200—400)℃. 0.15mm and 0.17mm wire are also
available.
2. Metal wire mesh corrugated packing is suitable for clean
gas-liquid system without solid particles or suspended solids or
not easy to self-assemble.
4. Wire Mesh Structured Packing Applications:
- Extraction of isopropanol.
- Ethyl trimethylacetoacetate was extracted and high vacuum
distillation was carried out with corrugated wire mesh packing.
- Purification of tert-butyl cresol early ether by vacuum
distillation in metal wire mesh packing column.
- Purification of tetrafluoroethylene monomer and substitution of
corrugated wire mesh packing for ceramic ring packing in
distillation.
- Butene-2 Separation with 700Y Metal Wire Mesh Corrugated Packing.
- Separation of n-alkanes with vacuum distillation using 700Y
corrugated wire mesh packing.
- Separation of synthetic fatty acids with vacuum distillation using
700Y corrugated wire mesh packing.
- Isopropanol Separation, Plate Tower Modified with 700Y Metal Wire
Mesh Corrugated Packing.
- Distillation of Tert-Butylphenol with 700Y corrugated wire mesh
packing.
- The cyclohexanone separation unit is revamped with metal wire mesh
corrugated packing instead of Intalox saddle ring packing.
- Separation of ethyl acetate, purification of chloroform, anhydrous
ethanol, etc.
- Isotope Separation with Phosphorus Bronze or Brass Wire Mesh
packing column.
- Vacuum distillation column for separation of chlorotoluene isomers
with 700Y wire mesh packing.
- Isopropanol Extractive Distillation Column and Ethylene Glycol
Drying Column.

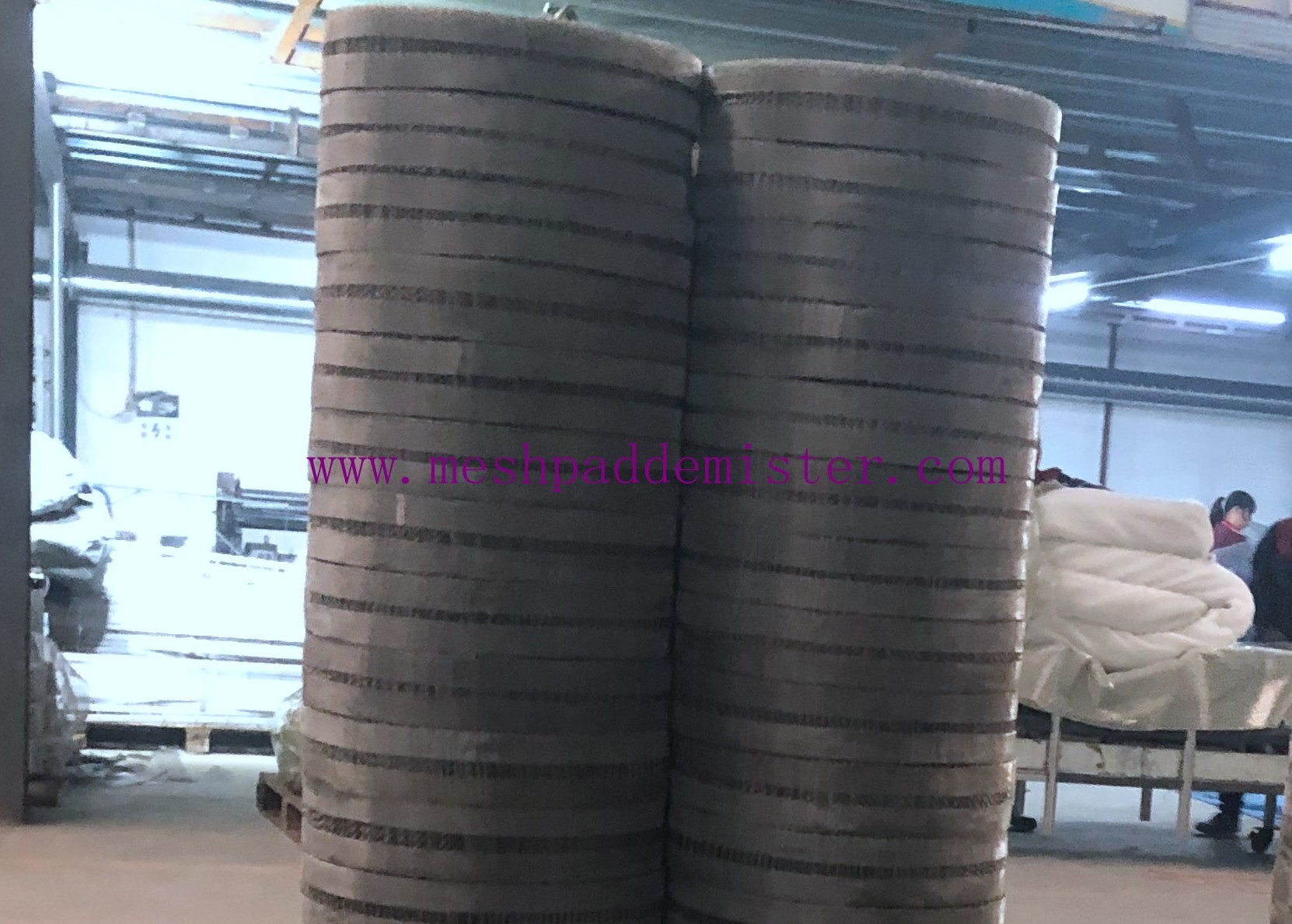

5. Wire Mesh Structured Packing Gallary
6. Wire Mesh Structured Packing Exporting:
The United States of America, 500X wire gauze packing;
Vietnam, 350Y structured packing;
Kazakhstan, 250Y structured packing;
