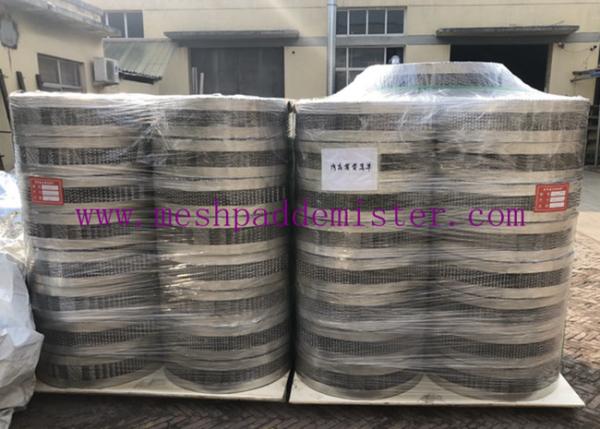

3.5Y AISI 304 metal plate structured packing 486 mm in diameter
1. Manufacturing requirements of metal plate structured packing
1.1 According to the requirements, punching, rolling fine grain (or
rolling grain equivalent to fine grain) and corrugation of raw
stainless steel belt shall be made into corrugation belt of orifice
plate, and then the corrugation plate shall be cut into pieces
according to different chord length on the cross section of packing
plate and the requirements of packing plate assembly or block
assembly.
1.2 The packing plate is composed of a number of corrugated plates
arranged vertically and evenly. The corrugation angle of the two
adjacent orifice plates is overlapped in the opposite direction.
2. Performance index of tray column and packed tower
Tower Type performance index | tray tower | Random packing tower | Structured packing tower |
Allowable load factor F | 0.3-2.44 | 0.3-2.93 | 0.12-4.4 |
| Pressure drop per theoretical stage / Pa | 400-1067 | 120-240 | 1.3-106.7 |
| HETP / m | 0.6-1.2 | 0.45-1.5 | 0.1-0.75 |
3. Structural dimension and characteristic parameters of stainless
steel orifice corrugated packing.
| Item | Unit | 125X | 125Y | 250X | 250Y | 350X | 350Y | 500X | 500Y |
| corrugation height h | mm | 24.0 | 11.5 | 8.4 | 6.0 |
| corrugation inclination θ | (°) | 30 | 45 | 30 | 45 | 30 | 45 | 30 | 45 |
| corrugation distance 2B | mm | 39.6 | 19.0 | 14.0 | 9.9 |
| corrugation angle β | (°) | 79.0 | 79.1 | 79.6 | 79.0 |
| void fraction ε | δ=0.15mm | % | 99.4 | 98.6 | 98.0 | 97.2 |
| δ=0.12mm | % | 99.5 | 98.9 | 98.4 | 97.8 |
| δ=0.10mm | % | 99.6 | 99.1 | 98.7 | 98.2 |
| Perforated hole diameter d0 | mm | 4.5 | 4.5 | 4.0 | 4.0 |
| Opening rate σ | % | 8.5-9.5 | 8.5-9.5 | 9.0-10.0 | 9.0-10.0 |
| radius of curvature of the top circle of corrugation angle R | mm | ≤2.0 | ≤1.4 | ≤0.9 | ≤0.5 |
Note: The influence of opening rate on the plate is not calculated
4. What is the role of structured packing in high vacuum
distillation column?
Distillation is a method to separate liquid mixture with high
purity by using reflux. It is a widely used liquid mixture
separation operation in industry, and is widely used in petroleum,
chemical, light industry, food, metallurgy and other departments.
Distillation operation is classified according to different
methods. According to the operation mode, it can be divided into
continuous distillation and batch distillation; according to the
composition of the mixture, it can be divided into binary
distillation and multi-component distillation; according to whether
the additives affecting the vapor-liquid equilibrium are added to
the mixture, it can be divided into ordinary distillation and
special distillation (including extractive distillation, azeotropic
distillation and salt-adding distillation); if the distillation
process is accompanied by distillation, it can be divided into two
types Chemical reaction is called reactive distillation
In the operation of packed tower, the liquid drops from top to
bottom along the structured packing surface, and the rising vapor
contacts with each other. Therefore, the packing surface is the
place for mass exchange and heat exchange.
every year we manufacture and supply hundreds of cubic meters of
metal structured packing in different models. There are many
popular types and materials for option. Custom order is welcome,
too! We are happy to help with what you need!
